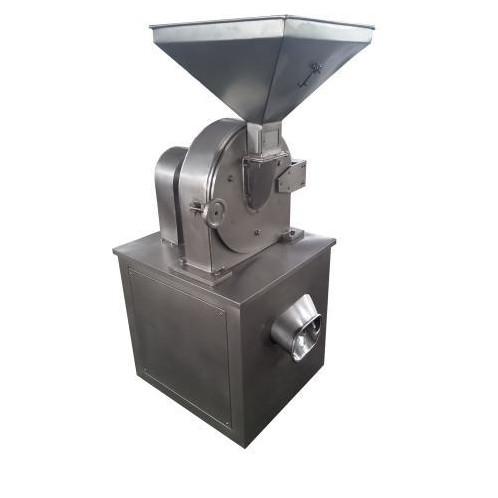

SS201 Powder Grinder Machine

Name: SS201 Powder Grinder Machine
Brand: Dession
Price: 2890 USD

SS201 Powder Grinder Machine Manufactures

Brand Name : Dession

Model Number : DS-G350

Certification : CE,SGS,TUV

Place of Origin : Guangdong,China

MOQ : 1 SET

Price : USD 2890-3590 per unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100 SET per month

Delivery Time : 5-10 working days

Packaging Details : wooden case

Name : herb tea leaves powder grinding machine small tea leaf grinding machine

Application : food, spice and tea leaves

Material : SS201

Function : to make the tea leaves into fine powder or small granule

Capacity : 30-50 kgs/hour

Finess : small than 100μm

Contact Now

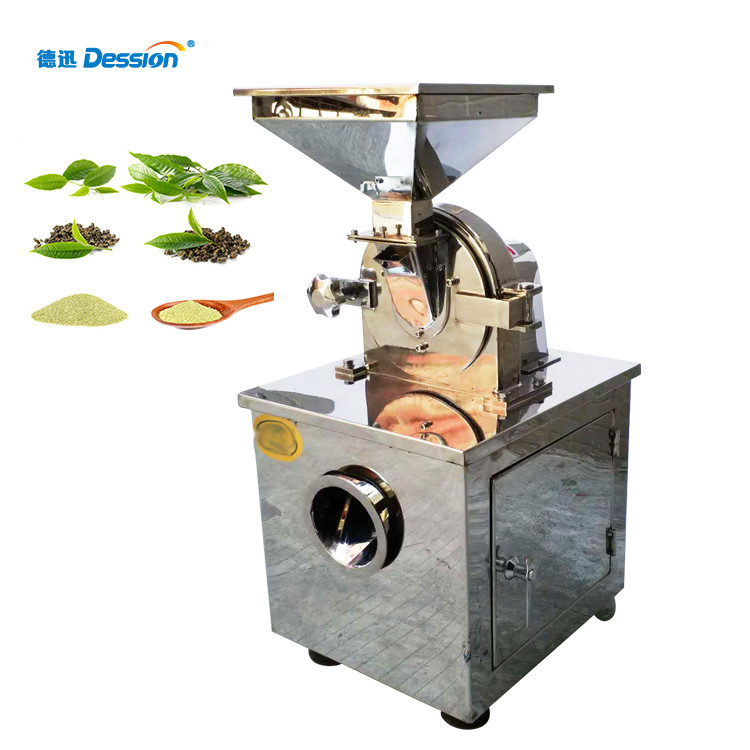

Herb Tea Leaves Powder Grinder Machine

Applications:

The Grindering machine is widely used in the pharmaceutical, chemical, food, dye and other industries to crush. The machine can crush all kinds of materials due to the principle of shear and impact.

Installation and Maintanence:
1. The fixed gear can be removed and the pharmaceutical extraction bolt can be removed.
2. To disassemble the bearing, first open the machine cavity, remove the rotating sprocket or rotary knife, remove the retaining ring and hole retaining ring or Mi Gong and the central bearing cap, then remove the outer pulley and bearing cap, respectively. Push out at both ends in the axial direction to remove the bearings and shaft at both ends.
3. During installation, the oil hole of the shaft cavity bushing remains aligned.
4. Install the screen ring, the screen ring must be close to the shoulder groove in the machine cavity, otherwise the screen ring will be damaged when the door is closed.
5. Make the screen ring. The unfolded length of the screen should be based on the inner shoulder circle diameter n of the screen ring plus 12mm undercut length, undercut 5mm.
6. Install the screen: align the markings 00-00 when the two screen rings are joined together, and then press the screen into the inner screen ring. If the screen is too tight, you can press the screen inward and then outward Just push.

Technical parameter:

Model	DS-G150	DS-G250	DS-G350	DS-G500
Capacity(kgs/hour)	20-80	30-200	50-300	80-150
Size of input granules(μm)	＜10	＜10	＜12	＜15
Size of output granules(μm)	12-120	12-120	12-120	12-120
Power(kw)	2.2	5.5	11	22
Speed of principal axis(round/min)	3000	2900	2900	2800

Company introduction:

Dession is a modern packaging equipment solustion provider integrating R&D, production and sales.Since the establishment of the company, with the continuous exploration, research and application of advanced technology, the company's development has begun scale, with an innovative team of professional and technical personnel, engineers, sales and after-sales service personnel.

Dession a leading manufacturer of Vertical Powder/Granule/Liquid Packaging machine, pillow packing machine and supporting facilities, which has successfully developed more than 80 kinds of packaging machines. Dession Packaging Machine has widely applied for different fields throughout the world, such as food/industrial food, medicines, hotel supplies, disposable goods, rubber goods, daily appliances, hardware fittings, sporting goods, toys etc.

Dession has more than 5,000 square meters of production plants, 3 production workshops and a parts processing workshop, including small vertical machine production workshops, large vertical machine production workshops and pillow machine production workshops.
